E Bike 48V 500W 700C Rear Hub Motor Wheel LCD3 Electric Bike Conversion Kits

Want to transform your beloved regular bike into an electric bike? With this kit, you can easily convert your bicycle to an e-bike withou much professional knowledge. This ebike conversion kit is ready to install with an aluminum double-walled rim and hub motor already attached. All you need to do is to install them as steps.

On-Screen LCD Display:

The LCD3 display meter Panel has a variety of functions, making it easier to view the data on the panel, such as battery display, backlight display, headlight display, brake display, etc. Make your cycling more clearly and more fun.

Good-quality and Good Performance Controller:

The aluminium sine wave controller is made of high quality metal with slot design, which has good heat dissipation function. Aluminium material is beneficial to the internal circuit, so as to avoid thermal overload. The brushless motor controller can provide steady speed and sensitive control of braking and direction changes.

E-bike Motor PAS Sensor:

12 Magnetic Point Electric Bicycle Pedal Assist Sensor Double Hall Sensor for E-bike Conversion Parts is easy installation and removal. The integrated assist sensor is installed on the right side of the bottom bracket by default, with a 12-pulse high-low signal ratio of 6:4. The chip screens and recognizes the pulse signal to determine the direction of rotation. The forward direction is valid, and the reverse direction is invalid.
Line color definition of 12 magnetic double for Hall integrated power sensor:
1. Green pulse signal
2. Red+5V
3. Black GND

Thumb Throttle:

--Widely Use: Has a wide application, regardless of battey types, sealed or lithium battery, water battery or dry battery.
--High Compatibility: Compatable with 12V, 24V, 36V, 48V, 60V, 72V electric bikes, part of 84v electric vehicles can also applicable.
--Cable Function: Green line is made for the handle hall signal line, the red-line connects to the positive 5V line of the handle, and the black line is for the negative pole.
--Plastic Material: Made of premium plastic material, which is anti impact, durable and sturdy.
--Warm Prompt: Please wiring while checking controller function line, do not simply connect controller wires by colors, the wrong connection will cause damage to the controller or handle.

Brake Levers:

Professional WUXING ebike brake lever cut off power ebreak, SM connector plug, good quality 3-pin female waterproof connector.

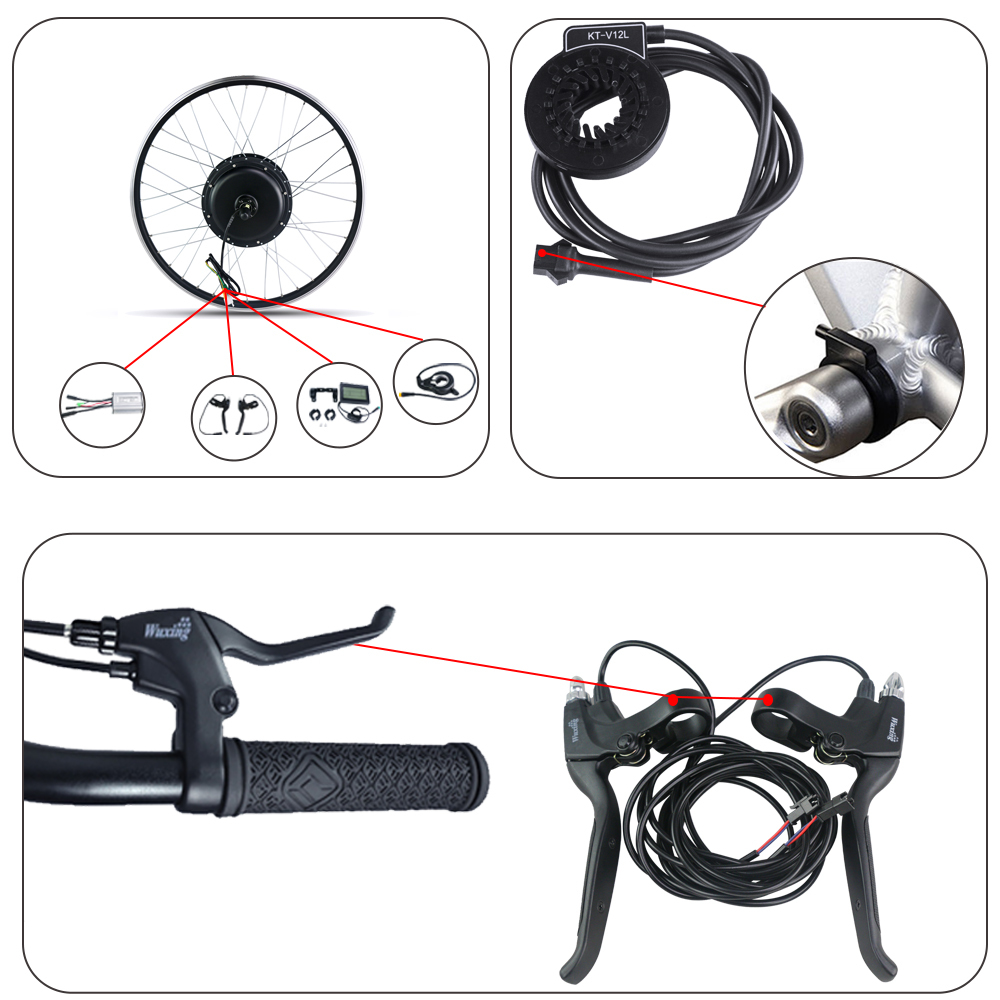

Easy to Install:

All accessories and required tools are included in the package. If you want, we can also send you the installation manual or video.

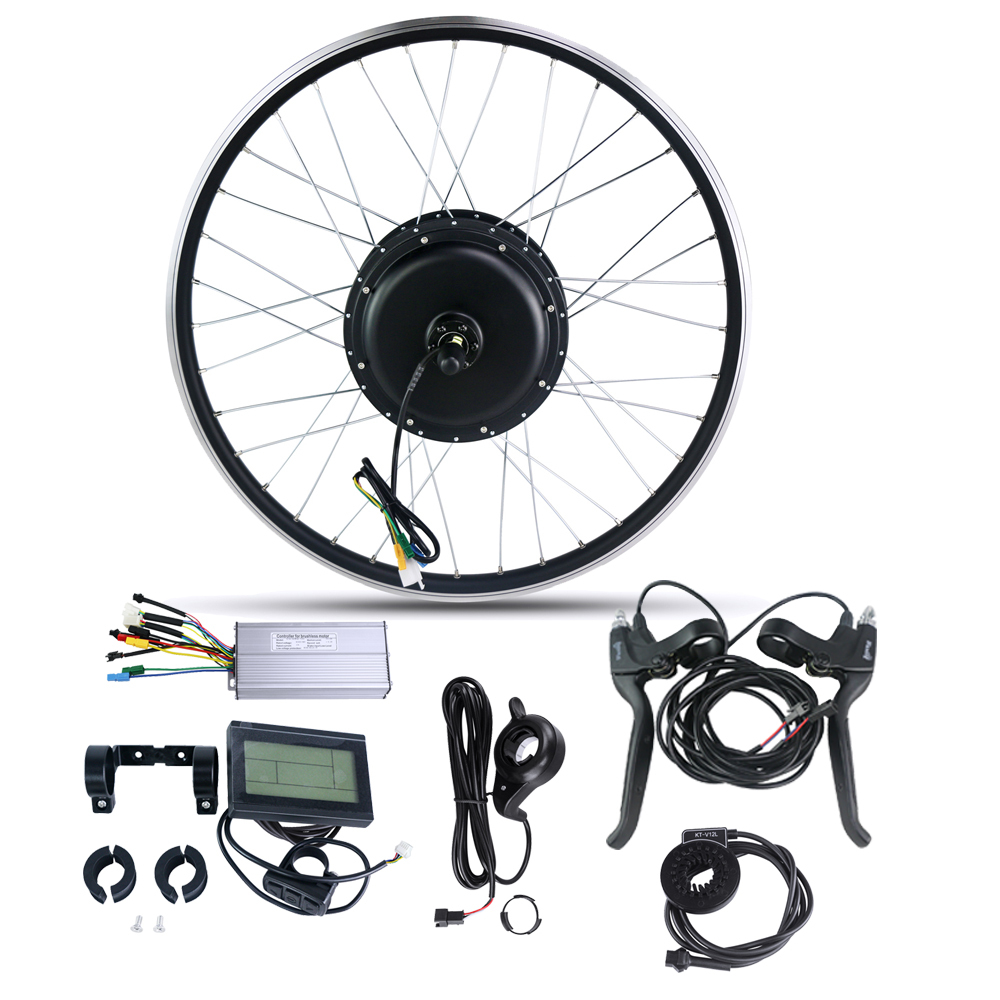

Package List:

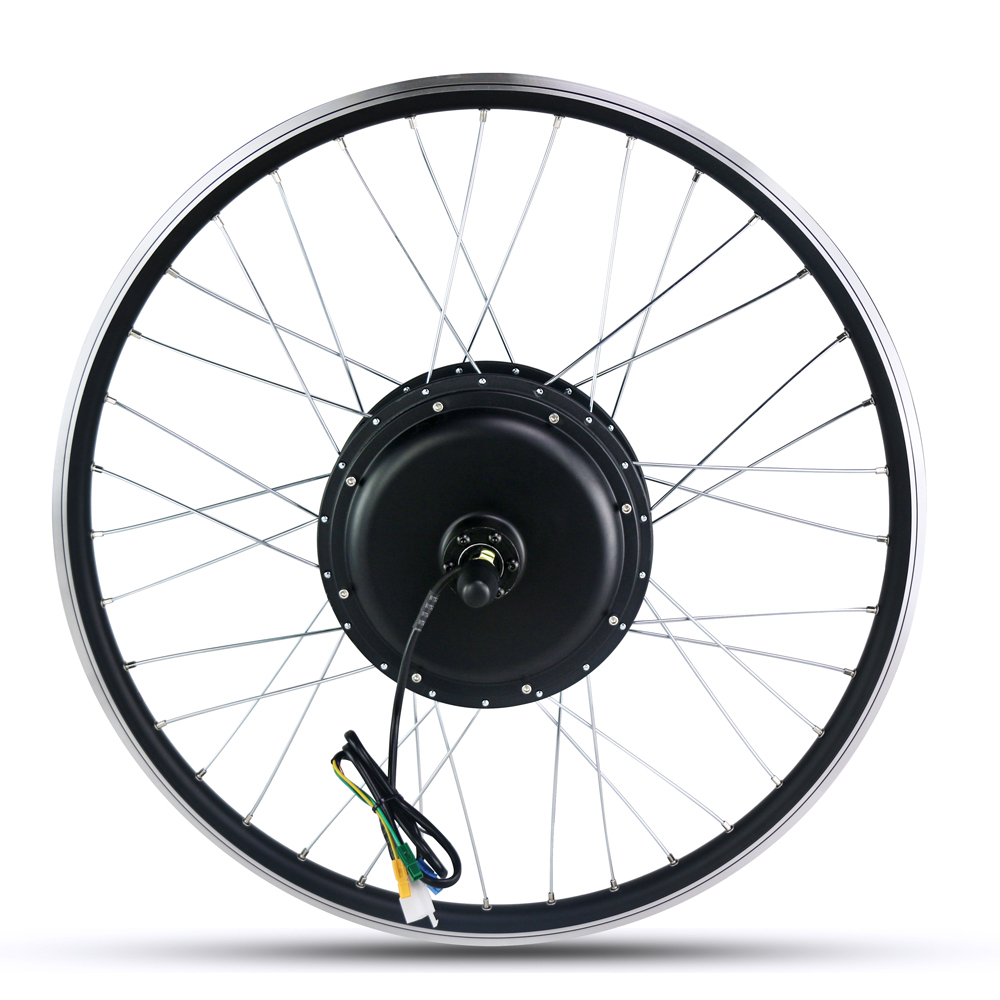

1pcs* 48V 500W 700C Rear motor wheel
1pcs* Motor extension cable
1pcs* 12 magnetic point power sensor
1pcs* LCD3 Display
1pcs* Motor controller
1pcs* Thumb throttle
1pcs* Brake Levers
1pcs* Install Accessories

Shenzhen Cyclebike Vehicle Co., Ltd was founded in 2014,which is located at Yueshang Industrial Building, Shiyan,Shenzhen.We are a professional electric bike manufacturer , specializing in developing, producing &processing, and overseas business. Mainly producing electric bike,electric scooter.lithium battery,battery pack. which was established as own brand product sells oversea to United Kingdom , USA , Europe,Asia,,and other international market,After 7 years of development and growth, Cyclebike has main products including:Electric bicycle,Electric Scooters,electric bicycle battery.battery pack,and Home outdoors portable power station. we have the warehouse in UK,USA,AU,,Germany,CA,so that we can directly deliver the products to our customers on fast way .Cyclebike will focus on the electric bicyele,scooters,and will do best for outdoor bicycle driving and power .We warmly welcome domestic and foreign customer inquiries for OEM and ODM business cooperation.

We are a professional manufacture with factory, which produce all kinds of high quality lithium baterruies as customers' requirements and designs. Our products have already exported to many places all over the world. This is a team which not only master advanced science and technology but also full of passion and energy. We are trying best to provide you high quality products as well as the sincere services.

• Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.

• Does not use or leave the battery near a heat source as fire or heater.

• Use the battery charger specifically for that purpose when recharging.

• Do not upside down the position and negative terminals.

• Do not connect the battery electrodes to an electrical outlet.

• Do not discard the battery in fire or a heater.

• Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

• Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

• Do not strike, trample or throw the battery.

• Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

We provide 1 year warranty for all electric bike batteries.

Any battery with quality problem in one month we can return the money after you provid the proof.

After one month we can send BMS or cells to you for repair,or you can send it back to repair as well.

All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping.

Our global after-sales service centers are located in Westhausen Germany, California USA, Victoria AU.

If your battery cant work during warranty, sent it to nearest after-sales center, we will repair it well then send it to you.
