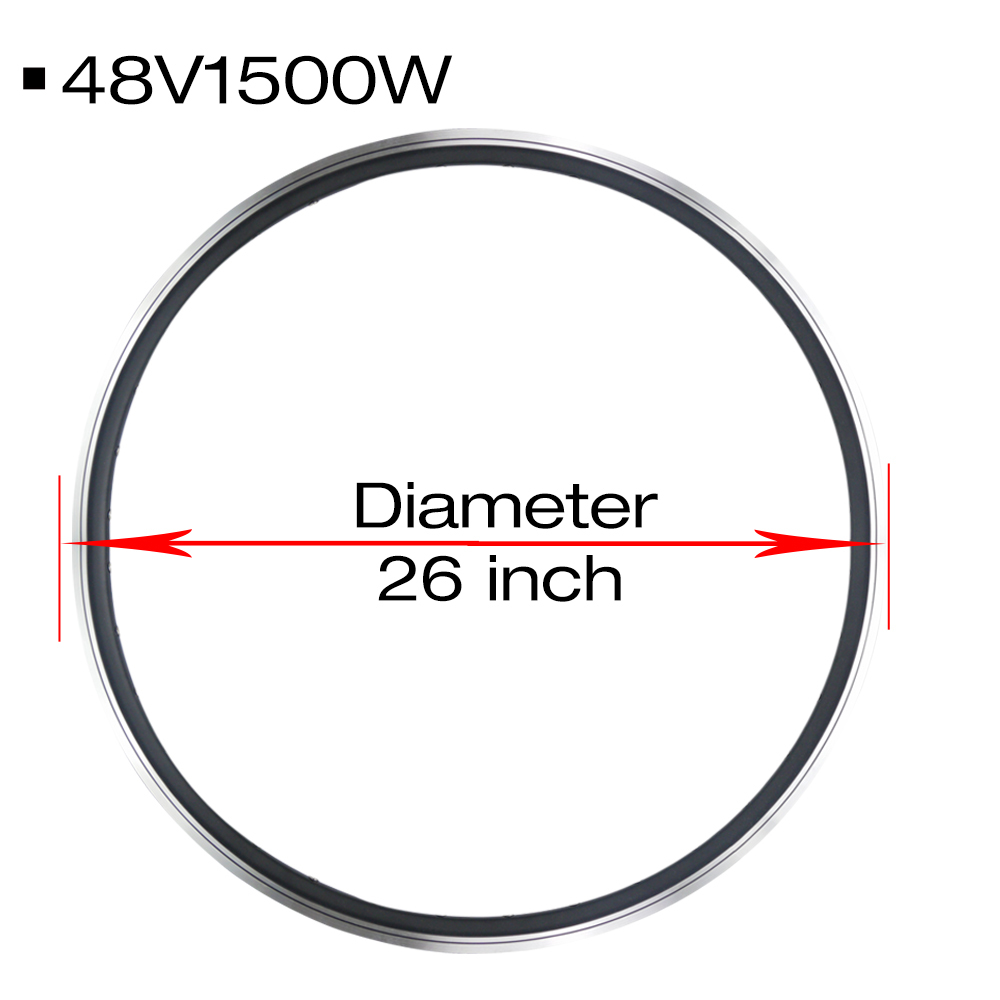

Best Ebike Conversion Kit 48V 1500W/2000W 26 Inch Wheel Rear Hub Motor Kits Thread-on Freewheel for EMTB Mountain Bike Bicycle Modification/Stock in UK
NOTE: Free Shipping/Tax for Address from United Kingdom.
Good-quality and Good Performance Controller:
The aluminium sine wave controller is made of high quality metal with slot design, which has good heat dissipation function. Aluminium material is beneficial to the internal circuit, so as to avoid thermal overload. The brushless motor controller can provide steady speed and sensitive control of braking and direction changes.
On-Screen LCD Display:
The LCD3 display meter Panel has a variety of functions, making it easier to view the data on the panel, such as battery display, backlight display, headlight display, brake display, etc. Make your cycling more clearly and more fun.

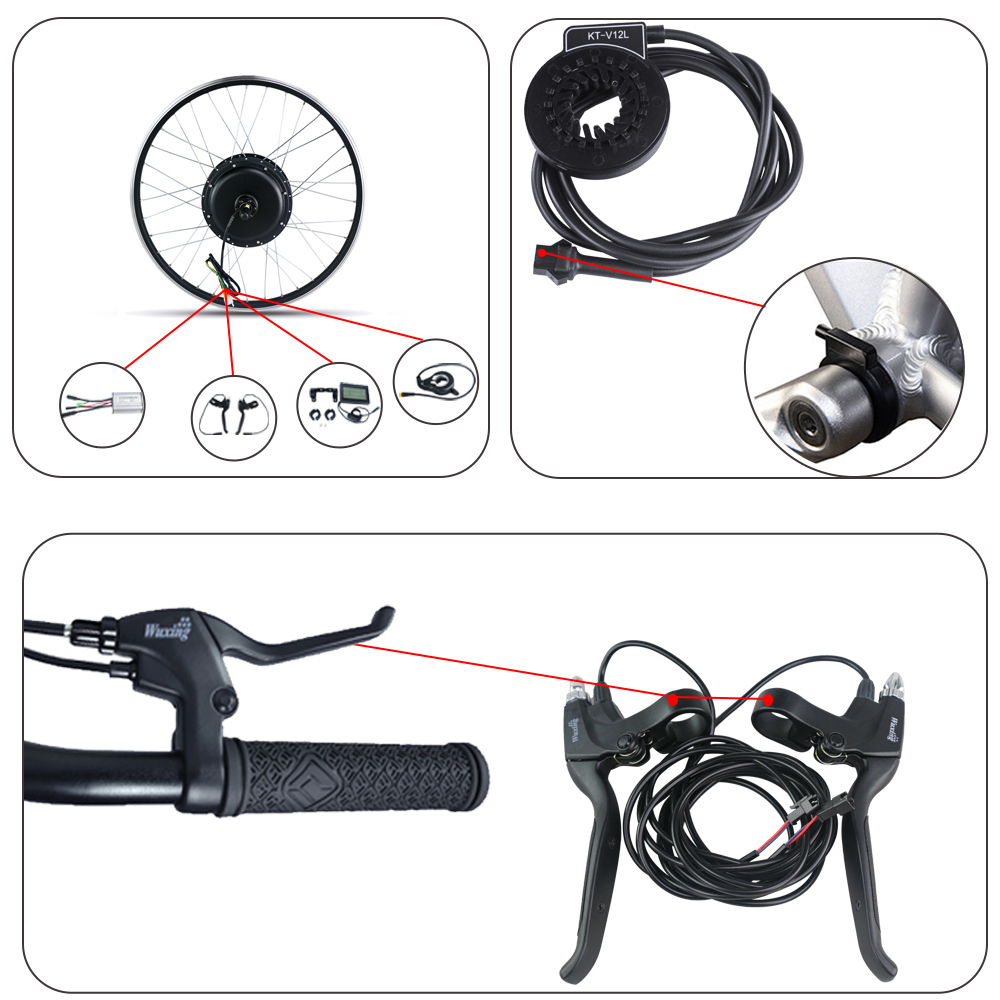

E-bike Motor PAS Sensor :
12 Magnetic Point Electric Bicycle Pedal Assist Sensor Double Hall Sensor for E-bike Conversion Parts is easy installation and removal. The integrated assist sensor is installed on the right side of the bottom bracket by default, with a 12-pulse high-low signal ratio of 6:4. The chip screens and recognizes the pulse signal to determine the direction of rotation. The forward direction is valid, and the reverse direction is invalid.
Line color definition of 12 magnetic double for Hall integrated power sensor:
1. Green pulse signal
2. Red+5V
3. Black GND
Thumb Throttle:
--Widely Use: Has a wide application, regardless of battey types, sealed or lithium battery, water battery or dry battery.
--High Compatibility: Compatable with 12V, 24V, 36V, 48V, 60V, 72V electric bikes, part of 84v electric vehicles can also applicable.
--Cable Function: Green line is made for the handle hall signal line, the red-line connects to the positive 5V line of the handle, and the black line is for the negative pole.
--Plastic Material: Made of premium plastic material, which is anti impact, durable and sturdy.
--Warm Prompt: Please wiring while checking controller function line, do not simply connect controller wires by colors, the wrong connection will cause damage to the controller or handle.
Brake Levers:
Professional WUXING ebike brake lever cut off power ebreak, SM connector plug, good quality 3-pin female waterproof connector.
Easy to Install:
All accessories and required tools are included in the package. If you want, we can also send you the installation manual or video.

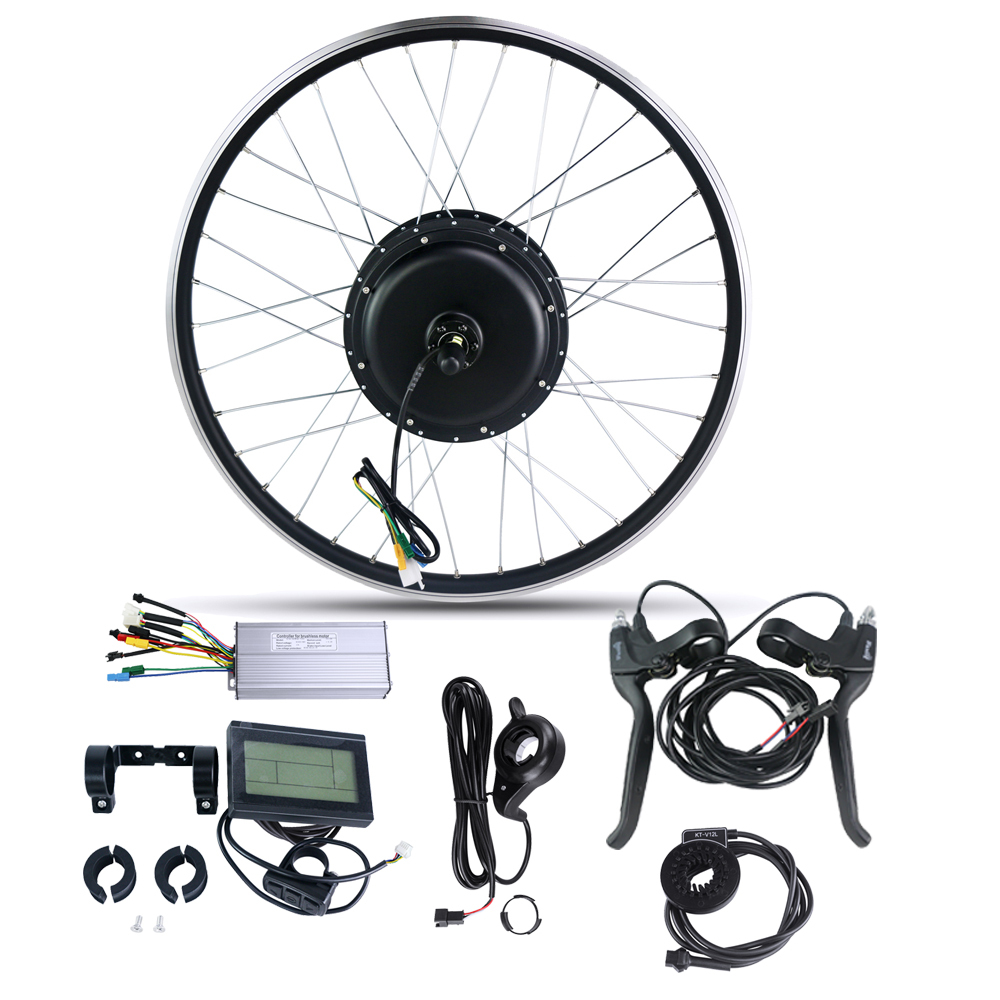

Package List:

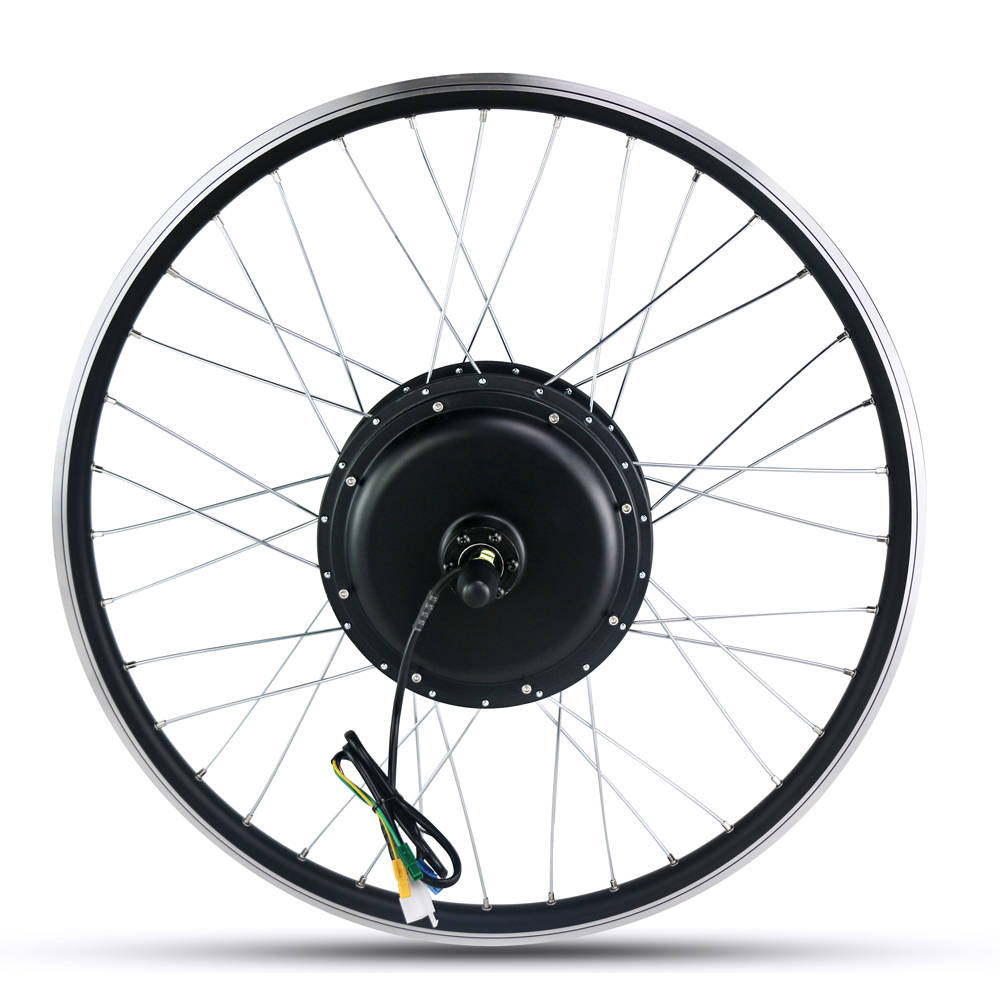

1pcs* 48V 1500W 26inch Rear motor wheel
1pcs* Motor extension cable
1pcs* 12 magnetic point power PAS sensor
1pcs* LCD3 Display
1pcs* Motor controller
1pcs* Thumb throttle
1pcs* Brake Levers
1pcs* Install Accessories
