Hailong 48V 14.4Ah BMS30A Electric bike Battery 21700 LG 4800mAh li-ion cells for 0-1000w Bafang BBSHD motor with 2A charger/Stock in USA
Note: STOCK in USA /3-5 Days Arrive/Free shipping for US Address

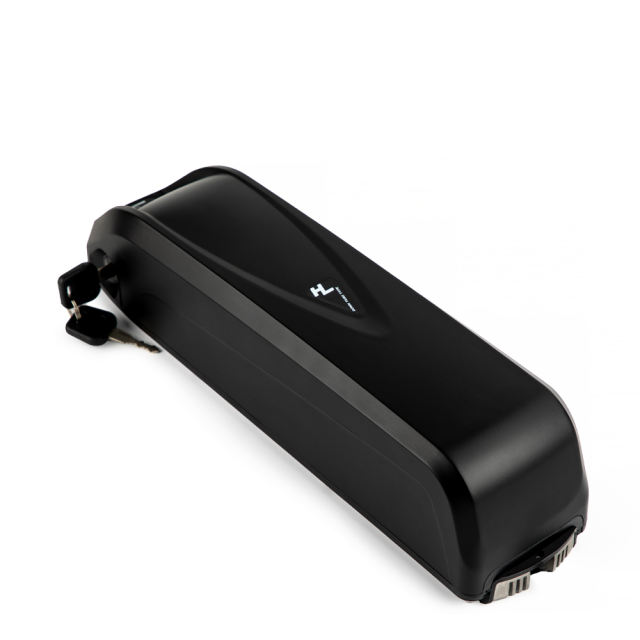

Hailong lithium battery for electric bikes.
The Hailong electric bike battery is designed for 0-1000w motor specially. It's a 48V 14.4Ah BMS30A Lithium-ion battery pack.
Perfectly for regular bicycle tranform into electric bike. The slide and slip installation base is easy to install for your bike.
The waterproof plastic outer shell case protect battery pack from rainy day cycling.
Inside the lithium battery pack, there are 6 protection modes designed with its battery management system.
Secure the battery's long service life and best prformance.
Battery Parameter
|
Model
|
UPP-S039
|
Battery type
|
Li ion Battery
|
Rated Voltage
|
48V
|
Rated Capacity
|
14.4Ah
|
Battery cell
|
21700 LG 4800mAh
|
Dimension
|
365*90*90mm
|
Battery weight
|
4.9kg
|
Max. constant discharge current
|
30A
|
Max.charge current
|
3A
|
Max.charge voltage
|
54.6V
|
Discharge cut-off voltage
|
36.4V
|
Cycles life
|
≥1000
|
Charger
|
54.6V 2A
|

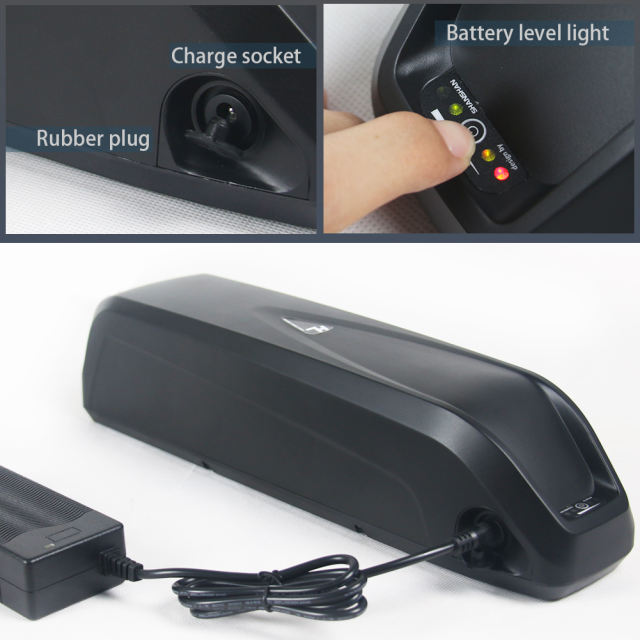

Safe Lock on Battery --- lock the battery on the frame, prevent battery slipping, ensure plate installed steady on bike.
Discharge socket --- discharge cable connect to the bike controller power cable, Red for Positive “+”; Black for Negative “-”
Charge socket --- the charge current for this socket can not be more than 3 amps.
Charge States --- Red light for charging and green light indicates full charged of the battery. When the led indicator turn to green, then battery finish charging and unplug the charger.
Battery level indicator: led light
1 red 3 green --- 100% 1 red 2 green --- 75%
1 red 1 green --- 50% 1 red 0 green --- 25%
Product Upgrade

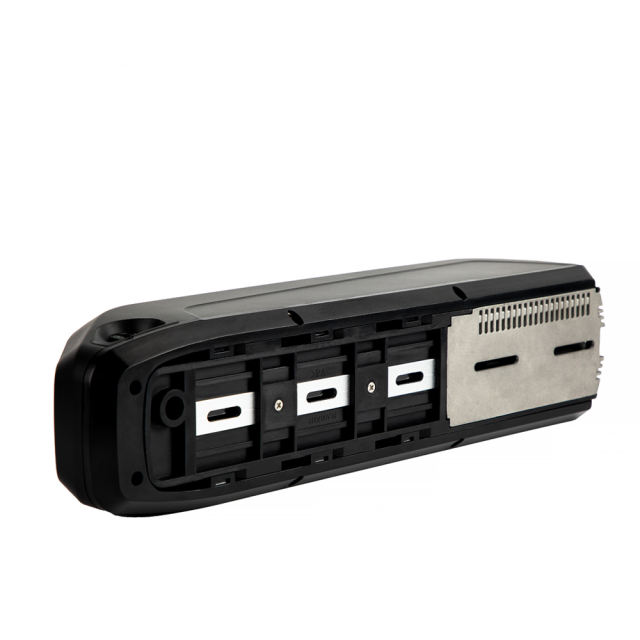

New Generation of Battery Base --- Battery Base Connection Upgrade
The number of needles was changed to 5 needles for 4 needles.
The material is upgraded to gilded material.
The electrical conductivity is stronger and more stable.
The heat dissipation is excellent performance. It’s not easy to get high temperature.
The battery is firmly connected to the base. Bad contact will not occur after jitter. The connection perform better.
Installation:
1. The inner bottom can be fixed with screws
-
Take off the mounting plate from the battery, and use screw to install the plate on the bike, then make the battery slip into the plate and lock it.
-
Completed installation
Packing List:
1. Battery fix plate and parts
-
Battery and key
-
Charge and AC wire
-
Specification and qualified certificate
Notice: We use XT60 Connector as default, the connector can be specified, please note on order.
Charger Plugs and Discharge Connectors Optional:
1. Charger Plug: US EU UK AU plugs are optional, we will send according to delivery country if without requested.
2. Discharge Connector: There are different kinds of connector can be choosed as picture below, we will offer default female connector&extra male connector if without requested.
3. If you have any requirement about this, please leave message in your order.
Our Advantages:
1.Global Service: Germany,United Kingdom,United States, Canada, Australia warehouse, 3-7days fast delivery and local return. We prefer to ship from oversea warehouse if you make order.
2.Self-operated Factory:We assemble all batteries in our own factory, we only source A-grade genuine cells ,at lowest price to attract buyers. But then have to scrimp on everything, then assemble them as quickly/cheaply as possible. We don’t take chances when it comes to our batteries or your safety!
3.High Quality Cells:We only source A-grade genuine cells from the official sources.
4.Rich experience: 10 years of battery packaging experience, from 24V, 36V, 48V, 52V, 60V, 72V to DIY Voltage/Size, we can tailor it for you, mature production technology, and screen out high-consistency cells, we know how Manufacture reliable and safe batteries for customers.
5.Battery Test:Each pack is ran through a full charge and discharge before leaving our facility to make sure you are getting every amp hour you paid for.
The test include:
Short Circuit Safety Test √
Overcharge Safety Test√
Crush Safety Test √
Needed Safety Test √
Extrusion Safety Test√
6.Warranty Service: We do all this and offer it at our usual low pricing, we don’t charge a premium for Safety and Reliability. Just because we offer low prices, it doesn’t mean we don’t stand behind our product if there is an issue. We have a proven track record of offering great after-sales support and warranty repairs/replacements. We will not leave you stuck (18 months warranty for battery, free repair or replacement if there is any quality problem, with Support Centres in Germany&United Kingdom&United States&Canada&Australia.)
