U004-1 Triangle Ebike Battery, LG4800mAh 21700 Li-ion Cell Battery Pack for Electric Bicycle 0-3000w Motor
Features:
►Hard plastic triangle case, the case is stronger a lot than normal cloth triangle bag, to better protect the cells.
►Using 21700 batteries, it has a larger capacity, while fewer batteries have a larger capacity.
►With on/off button,upgrade metal switch,safer and more convenient.
►Power display accurate display of battery level,inform you battery power in anytime.
►Superior quality reclosable fastener with strong tear resistance.Easy installation and removal.

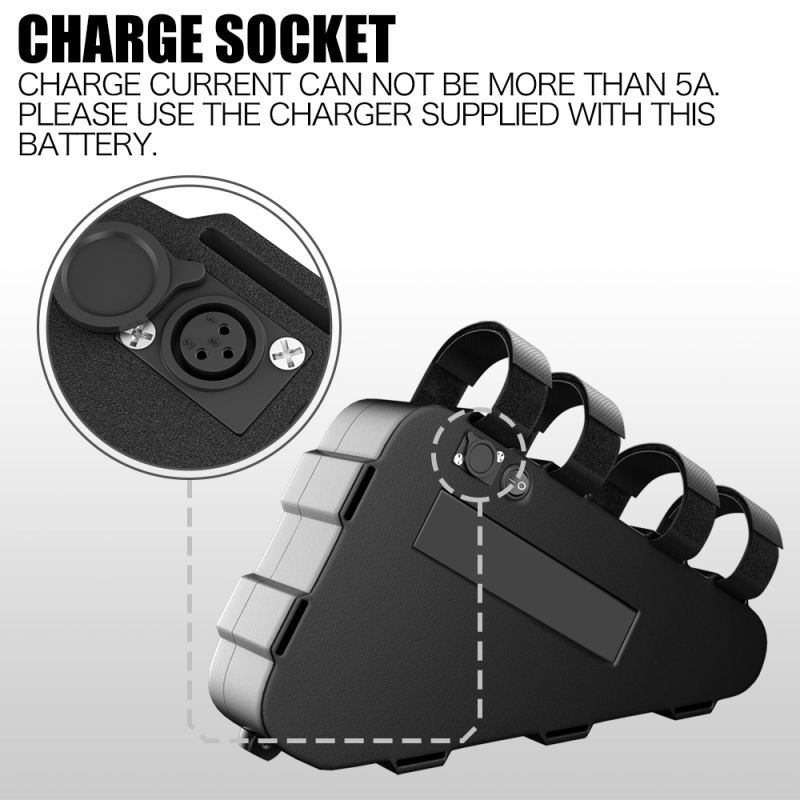

►The charging port of cannon head can charge more quickly. Support 3-5A fast charging.
►The battery support larger capacity, get longer riding distance.

Specifications:
U004-1 48V 28.8Ah BMS 50A LG4800 for 0-1800W
Voltage: 48V
Capacity: 28.8Ah
Nominal Power: 1382.4Wh
Built-in BMS: 50A
Cell: LG 4800mAh
Composed Type: 13S6P
Number of Cells: 78PCS
Cycle Life: 800-1000 cycles
Fit for Motor: 48V 0-1800w
Riding Mileage: 63-128km
Charger: 54.6V 4A
Charging Time: 7-8 hours
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 36.4V
Charge Temperature: 0-45℃
Discharger Temperature: -20-65℃

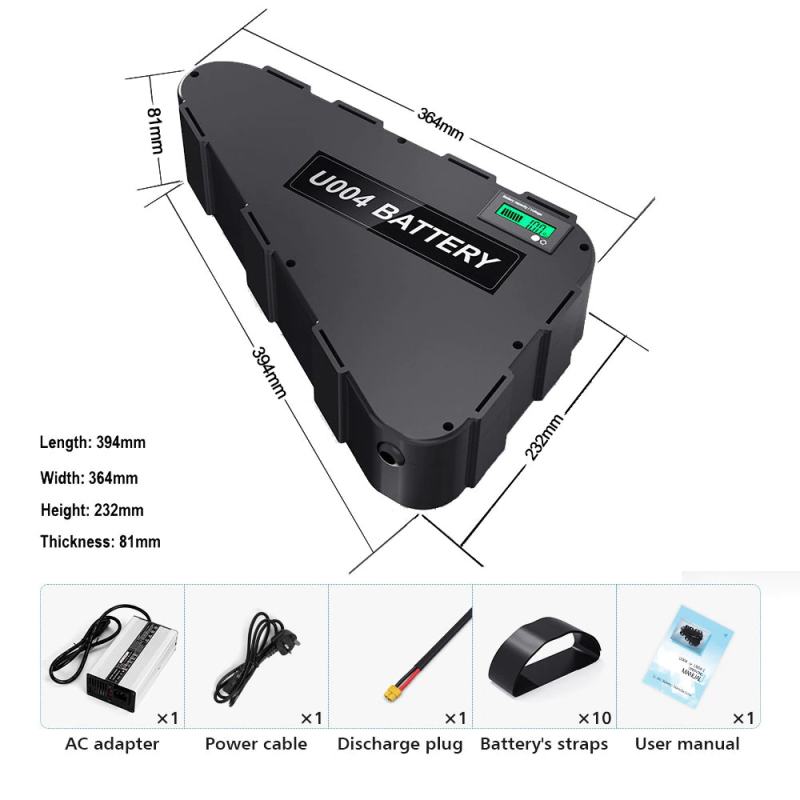

Size: 364*232*394*81mm
Battery Weight: 6.5kg(14.33lb)
Discharge Connector: XT60
U004-1 52V 28.8Ah BMS 50A LG4800 for 0-1800W
Voltage: 52V
Capacity: 28.8Ah
Nominal Power: 1497.6Wh
Built-in BMS: 50A
Cell: LG 4800mAh
Composed Type: 14S6P
Number of Cells: 84PCS
Cycle Life: 800-1000 cycles
Fit for Motor: 48V 0-1800w
Riding Mileage: 69-138km
Charger: 58.8V 4A
Charging Time: 7-8 hours
Charge Cut-off Voltage: 58.8V
Discharge Cut-off Voltage: 39.2V
Charge Temperature: 0-45℃
Discharger Temperature: -20-65℃
Size: 364*232*394*81mm
Battery Weight: 6.9kg(15.21lb)
Discharge Connector: XT60
U004-1 72V 19.2Ah BMS 60A LG4800 for 0-3000W
Voltage: 72V
Capacity: 19.2Ah
Nominal Power: 1382.4Wh
Built-in BMS: 60A
Cell: LG 4800mAh
Composed Type: 20S4P
Number of Cells: 80PCS
Cycle Life: 800-1000 cycles
Fit for Motor: 72V 0-3000w
Riding Mileage: 44-79km
Charger: 84V 2A
Charging Time: 9-10 hours
Charge Cut-off Voltage: 84V
Discharge Cut-off Voltage: 56V
Charge Temperature: 0-45℃
Discharger Temperature: -20-65℃
Size: 364*232*394*81mm
Battery Weight: 6.6kg(14.55lb)
Discharge Connector: XT60

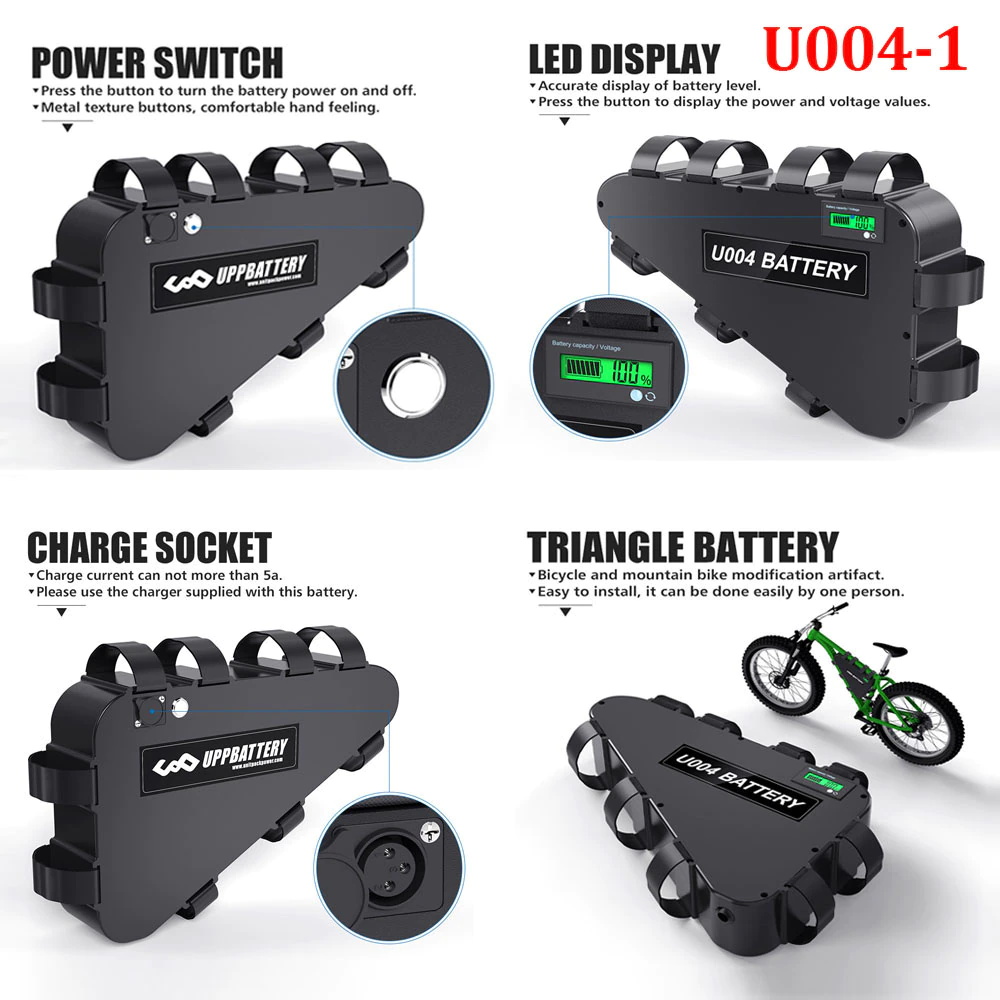

【LED Display】
Accurate display of battery level-The LED display pannel on this battery show the battery level in real time. Lighted LED power Indicator, informing you to charge your battery on time.
Press the button to display power and voltage values.With on/off button to help you save more power.
【Built-in Genuine A Grade Lithium-ion Cell】
This triangle battery pack is made of LG brand lithium-ion cell. Good quality brand cell ensure it's long lifespan for usage.
Each pack have ran through a full charge and discharge test in produce process, to make sure you are getting every amp hour you paid for.
【 ≥80% Capacity After 800 Cycles】
We have implemented a strict high quality management policy: Every Lithium battery have pass the QC appearance and function test before shipment. The Ebike battery charge cycle exceeds 1000 times, life expectancy of up to 5 years.
【One month free Return/ One Year Warranty/ Lifetime Technical Support】
One month free return, one year quality assurance, if your product damaged within one year, we offer free repair service in USA, if the battery can't repaired, we will send new one to you for free. Any problem, please contact seller for help.


Packing list:
1pcs* Triangle battery
1pcs* AC adapter
1pcs* Power cable
1pcs* Discharge plug
10pcs* Battery’s straps
1pcs* User manual

Note:
1. Select a suitable parameter for your ebike convertion kit. If you prefer other discharge connector, such as XT90, T Plug, please contact seller after order.
2. If there is no voltage and capacity that you want to buy, contact the seller for price quote. We can do custom build for you.
