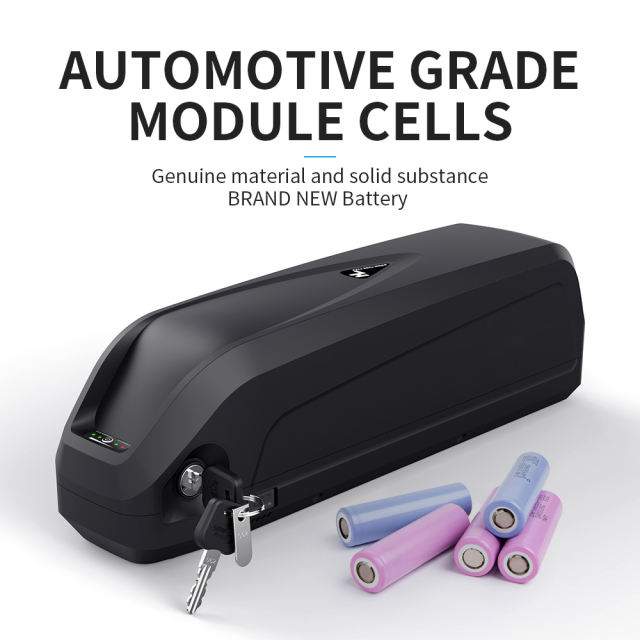

Hailong-3 eBike Removable Battery with USB for Electrics Charging 48V 52V 13Ah 15Ah 17Ah 18650 Lithium Cells Ebike battery For 0-1000w Motor with 2A charger for OUXI Saibaike V8 Fatbike
NOTES: Stock in UK, Free Tax, Free Shipping for Address in UK.
The Hailong electric bike battery is specially designed for motors between 0 and 1000W. It comes with smart battery management system (BMS protection board) and an easy-to-install sliding/slip base, making it ideal for transforming regular bikes into electric bikes. The waterproof plastic outer shell case protects the battery pack from water, while the 6 protection modes within its battery management system ensure the battery has a long lifespan and optimal performance.
Specifications:
| Model |
UPP-S039-3 |
| Battery type |
18650 Li ion Battery |
| Rated Voltage |
48V, 52V |
| Rated Capacity |
13Ah,15Ah,17Ah |
| Battery cell |
2500mAh/3000mAh/3350mAh |
| Dimension |
370*110*90mm |
| Battery weight |
1kg |
| Max. constant discharge current |
30A, 40A |
| Max.charge current |
5A |
| Max.charge voltage |
54.6V, 58.8V |
| Discharge cut-off voltage |
36.4V |
| Cycles life |
≥1000 |
| Charging Time |
6-7 hours |
| Charger |
54.6V/58.8V 2A |
Safe Lock on Battery --- lock the battery on the frame, prevent battery slipping Install plate for steady on bike
Discharge socket --- discharge cable connect to the bike controller power cable, Red for Positive “+”; Black for Negative “-”
Charge socket --- the charge current for this socket can not be more than 3 amps.
Charge States--- Red light for charging and green light indicates full charged of the battery. When the led indicator turn to green, then battery finish charging and unplug the charger.
Battery level indicator: led light
1 red 3 green --- 100% 1 red 2 green --- 75%
1 red 1 green --- 50% 1 red 0 green --- 25%
Product Upgraded
New Generation of Battery Base --- Battery Base Connection Upgrade
The number of needles was changed to 5 needles for 4 needles.
The material is upgraded to gilded material.
The electrical conductivity is stronger and more stable.
The heat dissipation is excellent performance. It’s not easy to get high temperature.
The battery is firmly connected to the base. Bad contact will not occur after jitter. The connection perform better.
Packing List:
1. Battery fix plate and parts
2. Battery and key
3. Charger and AC wire
4. Specification and qualified certificate
Charger Plugs and Discharge Connector Optional:
1. Charger Plug: US EU UK AU plugs are optional,we will provide according to delivery country if without requested.
2. Discharge Connector: There are 6 kinds optional as below picture, will soldered with default female connector&extra male connector if without requested.
3. If you have any requirement about this, please leave message in your order.
Why Us?
1.Global Service:
Germany,United Kingdom,United States, Canada, Australia warehouse, 3-7days fast delivery and local return. We prefer to ship from oversea warehouse if you make order.
2.Self-operated Factory:
We assemble all batteries in our own factory, we only source A-grade genuine cells ,at lowest price to attract buyers. But then have to scrimp on everything, then assemble them as quickly/cheaply as possible. We don’t take chances when it comes to our batteries or your safety!
3.High Quality Cells:
We only source A-grade genuine cells from the official sources.
4.Rich experience:
10 years of battery packaging experience, from 24V, 36V, 48V, 52V, 60V, 72V to DIY Voltage/Size, we can tailor it for you, mature production technology, and screen out high-consistency cells, we know how Manufacture reliable and safe batteries for customers.
5.Battery Test:
Each pack is ran through a full charge and discharge before leaving our facility to make sure you are getting every amp hour you paid for.
The test include:
Short Circuit Safety Test √
Overcharge Safety Test√
Crush Safety Test √
Needed Safety Test √
Extrusion Safety Test√
6.Warranty Service:
We do all this and offer it at our usual low pricing, we don’t charge a premium for Safety and Reliability. Just because we offer low prices, it doesn’t mean we don’t stand behind our product if there is an issue. We have a proven track record of offering great after-sales support and warranty repairs/replacements. We will not leave you stuck (18 months warranty for battery, free repair or replacement if there is any quality problem, with Support Centres in Germany&United Kingdom&United States&Canada&Australia.)
