Bike Model |
E5-Speed |
Electric Parameters |
Specification |
ConfRev |
36V10Ah 250W/36V13Ah 350W/48V10Ah 350W |
Riding Mode |
Electric Power Assist (5 Shifts) |
Wheel Size |
27.5“ / 29" |
|
Pure Electric (5 shifts) |
Frame Height |
17" / 19" |
|
Pure Human Riding (9 speeds) |
Bike Color |
BlackRed / BlackGreen / BlackGray |
Endurance Mileage |
Electric Power Assist,70~110KM |
Net Weight |
≈19.5 KG |
|
Pure Electric,40~60KM |
Frame |
E5, alloy AL6061,Smooth welding&inner Cable,Matte,UV decals |
Motor Assist speed |
Max 25KMH, speed limit adjustable |
Handelbar Sets |
Alu alloy with Matte,Hb31.8*680,St90,Sp31.6*350mm |
Max Load |
120 KG |
Clamps |
Alu alloy,Quick Release 34.9mm |
Battery |

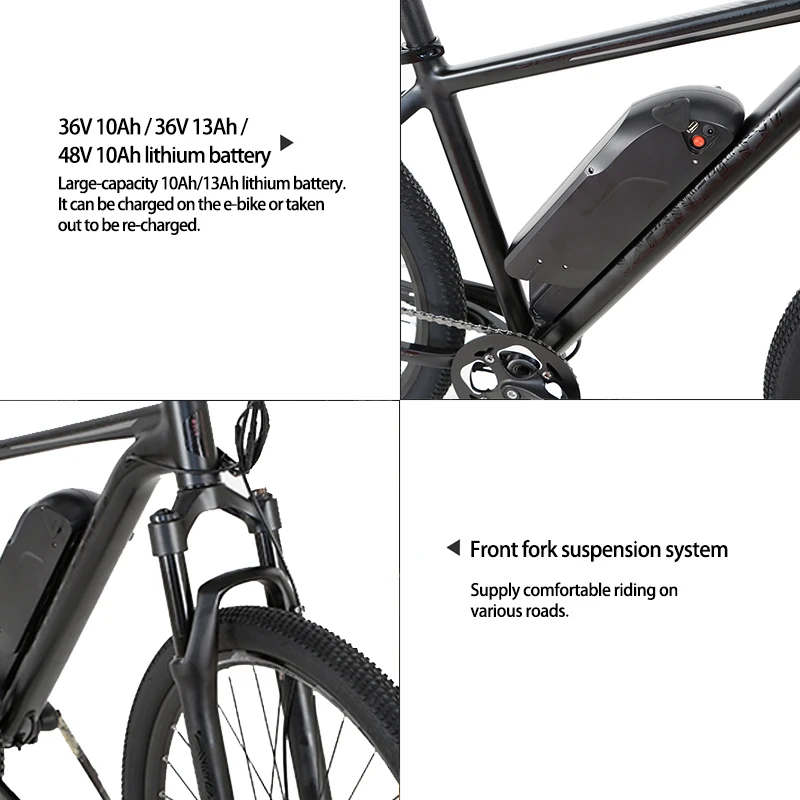

LH18650 Power Lithium, 36V10A / 36V13A / 48V10A |
Fork |
KST Alu alloy, Coil suspension, Manual-lockout |
|
with USB2.0 port 5V2A (For phones, etc.) |
Head Sets |
Alu alloy CNC, 44mm |
Full charging Time |
4-6 Hours |
Washer |
Alu alloy 3×28.6×10mm |
Charging Times |
>1000 Times |
Derailleur Lever |

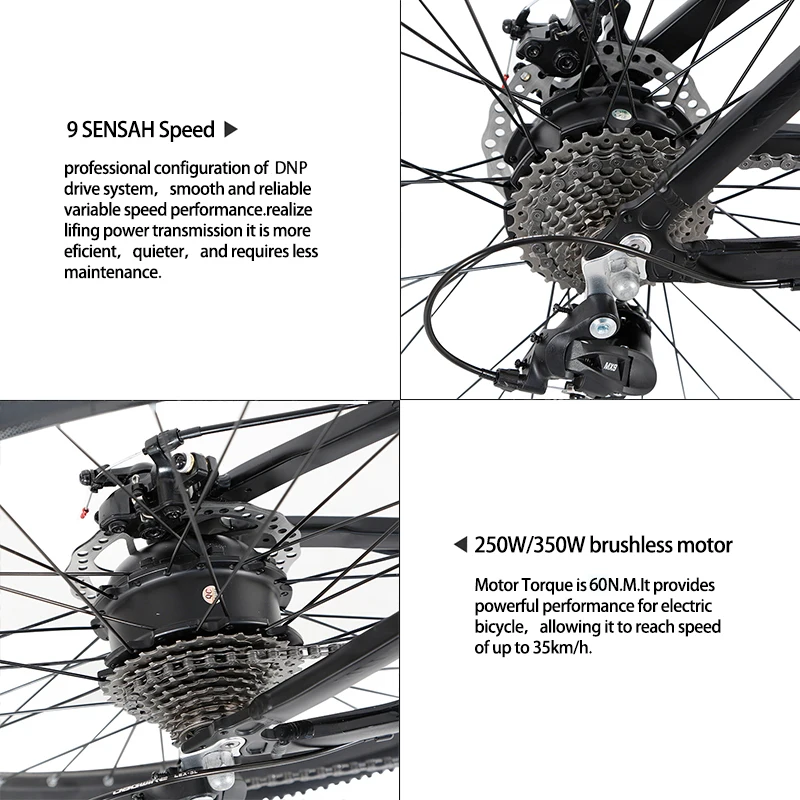

SENSAH MX-9 speeds |
Charging Protect |
Overvoltage,Overcurrent Protection,etc. |
Front Derailleur |
None |
|
ShortCircuit,ReversecConnection Protection,etc. |
Rear Derailleur |
SENSAH MX-9 |
Motor |
Rear Drive, 36V250W / 36V350W / 48V350W |
Cranksets |
RS, Alu alloy, Square hole, 38T with alloy cover |
|
DC Brushless,Toothed,Low resistance&noise |
Cassettes |
DNP-9S, 13-32T |
Max Torque |
≈60 N.M |
Chain |
YBN-9S |
Waterproof grade |
IP54 |
BB |
KENLI,Square hole,with Bearing,BB68 |
Controller |
5 Shifts intelligent IC control system |
Brake |

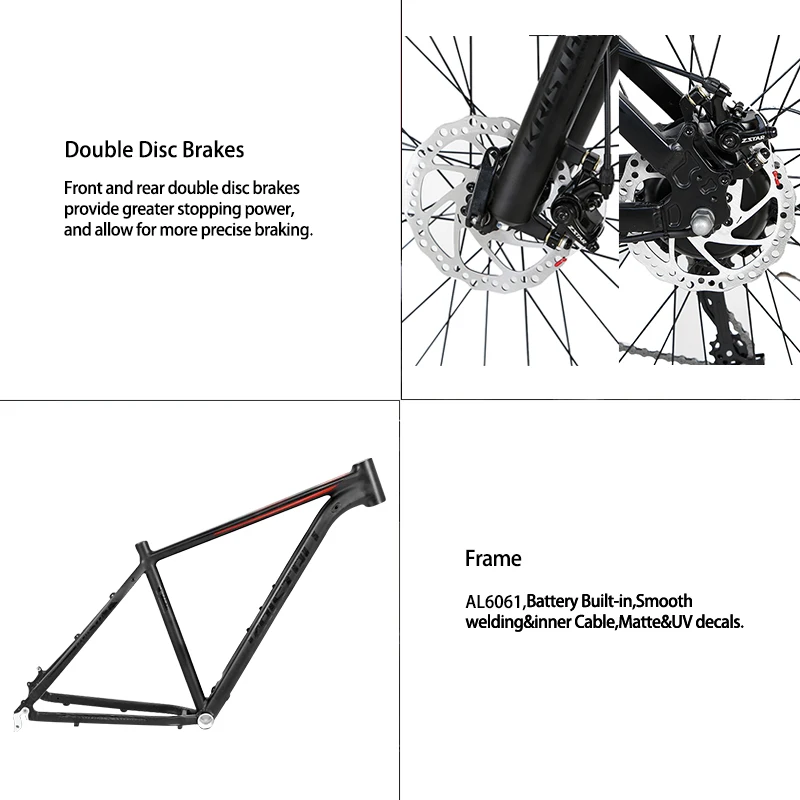

Z.STAR cable-pull Disc brake |
|
Sine wave integrated IC control chip |
Hub |
RS Alu alloy, 2-sealed Bearings, Disc brake |
Monitor |

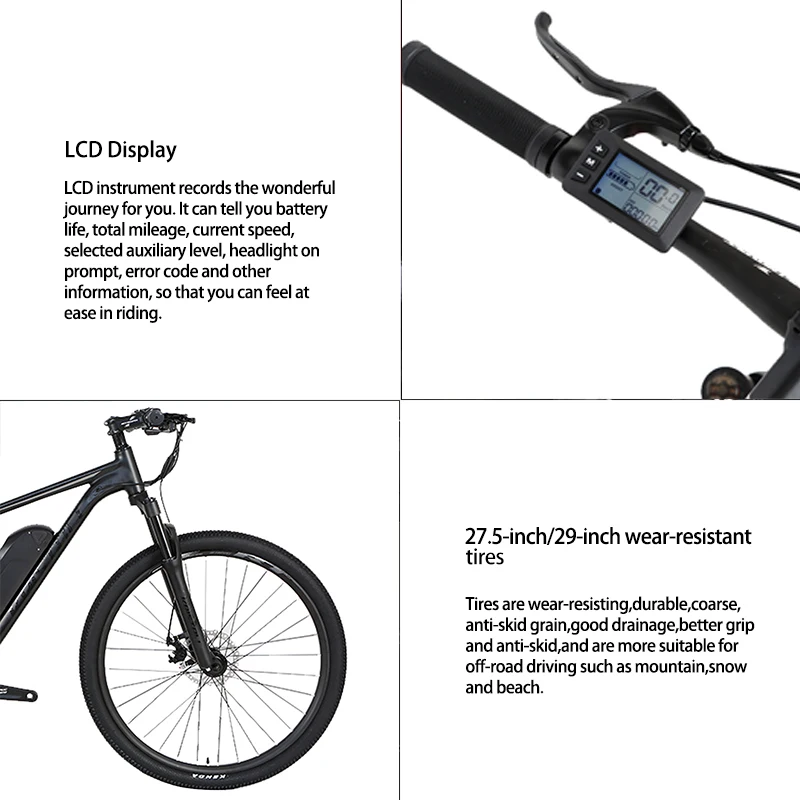

LCD digital display control instrument |
Rim |
Alu alloy with Double-wall&Rivets, W24×H19mm |
Display Function |
MPH,Miles,Electricity,Shift,Failure,etc. |
Spoke |
SHUNJIU, Circular 13G, Bend head |
Setting Function |
Mileage cleared,Wheel size,etc. |
Tire |
KENDA-K1187 or CST, 26"/27.5"/29"×2.1" |
Waterproof Grade |
IP6 |
Grips |
Circular, 22.2×130mm&2-locking ring,Comfortable |
Assist Sensor |
12 Magnetics pulse&double Holzer, Speed(cadence) |
Saddle |
Comfortable and Thickened for MTB |
Throttle |
Stepless speed regulation thumb-Lever |
Pedals |
WP-625 Alu alloy with lubricating for MTB |
Brake power off |
Power off Brake lever or Pedal stop |
Cables |
JAGWIRE,Internal cables,External cables |
Speed sensing |
Built-in Motor Holzer |
Accessories |
Steel rear kickstand+Tools |
Wire connector |
All waterproof quick connector |
