36V/48V Mini Bottle-shaped Ebike Battery 18650 Sanyo Li-ion Pedelec Battery for Bafang 500W BBS01 350W TSDZ2 250W Motor for Bosch eBike Battery Replacement
You may have seem a lot of shapes of ebike battery in the market. Do you know the bottle-shaped one? Now, let me introduce it to you.
Features:
- The bottle shaped design is our private design patent which ensure it’s unique, specialty and prove our R&D capability.

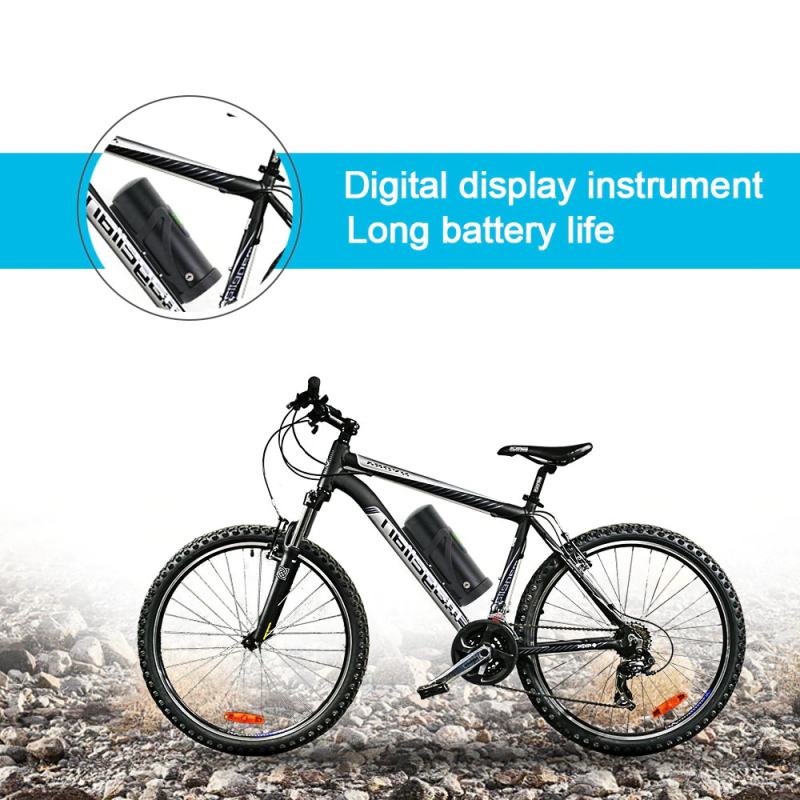

- Small and light weight water bottle style with holder fits all electric bicycle.
- IP65 Waterproof and solid aluminium alloy, more stronger than normal plastic case.
- The design with USB port on battery is able to charge cell phone and blue-tooth speaker.
- The ON/OFF switch on battery helps to save power when the bike is not being ride.
- LED indicator on battery inform the level of the battery power in anytime.
- Security Lock with keys on mounting base make sure it’s stable on bike frame.
- The life expectancy is two times longer than the lead-acid batteries.
- Rechargeable, removable and no memory effect on it.
- The weight is more lighter than other batteries.
- Smaller dimensions and can be customized.
- Safer and more environmentally friendly, No heavy metals and hazardous substances.
- Built-in BMS with Smart IC chip will protect the battery pack from over charge, over discharge, over-current, over-heat and short circuit.
U005 Parameter

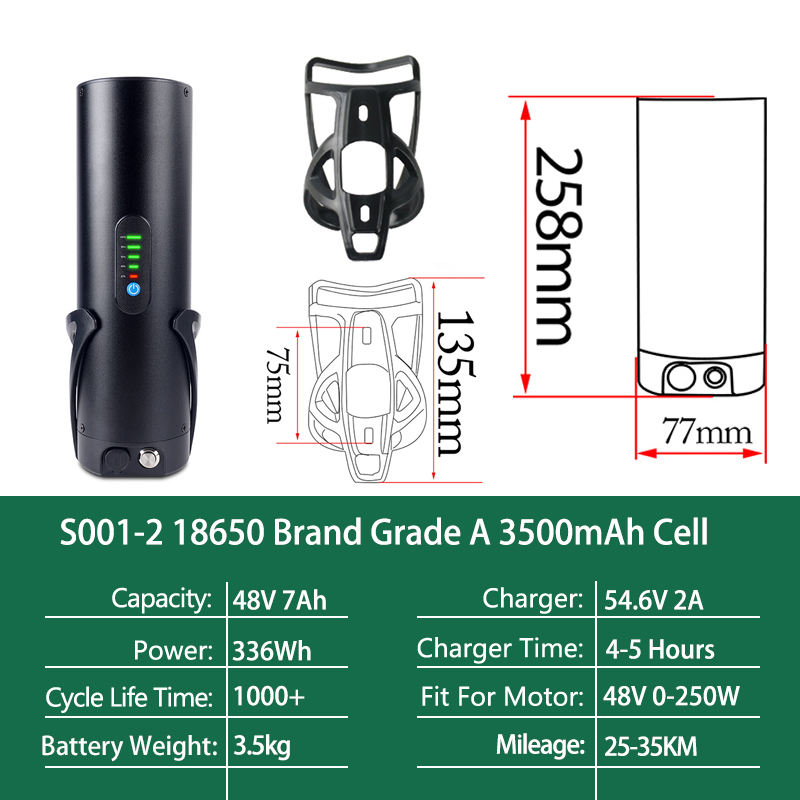

S001/ S001-2 Parameter:
| Parameter |
36V 7AH 20A BMS |
36V 10.5AH 20A BMS |
36V 9AH 20A BMS |
| Nominal Voltage |
36V |
36V |
36V |
| Nominal Capacity |
7Ah |
10.5Ah |
9Ah |
| Nominal Watt Hour |
252WH |
378WH |
324WH |
| Composed Type |
10S2P |
10S3P |
10S3P |
| Number of Cells |
20PCS |
30PCS |
30PCS |
| Battery Pack Cell |
Sanyo/Samsung/Chinese Brand Grade A cell 3500mAh |
Chinese Brand Grade A cell 3000mAh |
| Built-in BMS |
20A |
20A |
20A |
| Fit Motor Power |
36V 250W (0-252W) |
52V 250W 350W(0-378W) |
36V 250W(0-324W) |
| Discharge connector |
XT60 |
| Charge Cut-off Voltage |
42V |
42V |
42V |
| Discharge Cut-off Voltage |
28V |
28V |
28V |
| Battery Weight |
1.5kg |
2kg |
2.5kg |
| Battery Charger |
42V 2A |
42V 2A |
42V 2A |
| Charging Time |
4-5 Hours |
5-6 Hours |
4-5 Hours |
| Cycle Life |
1000 times |
| Charge Temperature |
0-45℃ |
| Discharge Temperature |
-20-65℃ |
| Protection Function |
Over charge, Over discharge,Over current, Short circuit |
| Battery Size |
188*77*77MM |
258*77*77MM |
258*77*77MM |
| Parameter |
48V 7AH 18A BMS Sanyo |
48V 7AH 18A BMS |
| Nominal Voltage |
48V |
48V |
| Nominal Capacity |
7Ah |
7Ah |
| Nominal Watt Hour |
336WH |
336WH |
| Composed Type |
13S2P |
13S2P |
| Number of Cells |
26PCS |
26PCS |
| Battery Pack Cell |
Sanyo 3500mAh |
Grade A Branded 3500mAh |
| Built-in BMS |
18A |
18A |
| Fit Motor Power |
48V 250W (0-336W) |
48V 250W (0-336W) |
| Discharge connector |
XT60 |
XT60 |
| Charge Cut-off Voltage |
54.6V |
54.6V |
| Discharge Cut-off Voltage |
36.4V |
36.4V |
| Battery Weight |
2kg |
2kg |
| Battery Charger |
54.6V 2A |
54.6V 2A |
| Charging Time |
4-5 Hours |
4-5 Hours |
| Cycle Life |
1000 times |
| Charge Temperature |
0-45℃ |
| Discharge Temperature |
-20-65℃ |
| Protection Function |
Over charge, Over discharge,Over current, Short circuit |
| Battery Size |
258*77*77MM |
258*77*77MM |
FAQ
Q: What type of this electric bike battery is?
A:It is li-ion battery,Chemical is Li(NiCoMn)O2.
Q: What is the difference between li ion battery, NI-MH battery and Lead acid battery?
A: Li-ion battery have longer cycle life, with light weight, small size, no memory effect, nontoxic and more environmental friendly.
Q: What's temperature range of charge and discharge?
A:Charge temperature from 0 to 45°C and discharge temperature from -20 to 65°C.
Q: What kind of cells used on this electric bicycle battery?
A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as you request.
Q: Is the e-bike battery come with charger?
A: Yes, all our e-bike batteries are come to you with charger. And there is normal charger and fast charger for options. If you need fast charger please contact with us.
Q: Is the electric bike batteries come with BMS?
A:Yes, Our batteries are design with SEIKO IC BMS.With it’s stable performance, our battery pack are able to avoid short circuit, overcharged, over discharge and over current during usage.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit to our factory.
Why Choose Us?
- Factory Direct Store:
We assemble all batteries in our own factory manufacture line. Never use fake or cheap cell pack during the production. We are serious on everything. Our destiny is to offer high quality products with competitive price and win-win situation for both side.
- Official High Quality Cell Sources:
We only source genuine A-grade genuine cells from the official sources.
- Every Battery Made Cycle Test:
Each battery pack will run through a full charge and discharge before sending to you. We assured that you will get every amp hour you’ve paid for.
The test include:
Short Circuit Safety Test √
Overcharge Safety Test √
Crush Safety Test √
Needing Safety Test √
Extrusion Safety Test √
- Best Oversea After-sale Service:
We have set up after-sale center and warehouses in a lot of countries like Australia and Canada,USA,Belgium,Germany. Help to save your budget on shipping cost.
- Notice for shipping time:
We offer free shipping for most of the orders.
For stocks in DE/US/CA/AU/UK warehouse, shipping time will be 2-7 business days usually.
For orders send from China, the production time need 2-5 business days usually. And shipping time usually take 30-60 working days. So please notice and be patient before place an order.
Guarantee
1) We provide 18 month warranty for all electric bike batteries.
2) Any battery with quality problem within one month since received we will resend a new one after proof provided.
3) Any battery with quality problem within one year, we provide free repaired.
4) All our electric bicycle batteries are made with high quality cells and BMS, and they will be 100% tested before shipping.
We are the top brand lithium battery manufacturer in China, rest assured to place order here.
Situations with below conditions are not guaranteed:
1) The battery goes over the water.
2) The battery broken by manual.
3) The cells being burnt out by incorrect usage.
4) Return the battery without reason.
5) Open a dispute without contacting us.
Warnings
- Do not immerse the battery in water or seawater, keep the battery store in a cool dry surrounding.
- Does not use or leave the battery near a heat source like fire or heater.
- Use the battery charger specifically for that purpose when recharging.
- Do not reverse the positive and negative terminals.
- Do not connect the battery electrodes to an electrical outlet.
- Do not discard the battery in fire or a heater.
- Do not short-circuit the battery by connecting the positive and negative terminals with metal objects directly.
- Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
- Do not strike, trample or throw the battery.
- Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
Feedback
1) Our battery can fit for most of the motor kit, include(not only) these:B0SCH, SHIMANO, YAMAHA, Panasonic.
2) Please contact us If you can't confirm whether our battery can fit your motor.
3) If you have any problems please feel free to contact with us BEFORE you leave negative feedback or file a dispute.
4) Any problem is not a problem, as long as you contact us.
5) Your satisfaction and positive feedback is very important to us.
6) Please kindly leave us a positive feedback and 5 Stars if you are satisfied with our items and services.
